Guide to Cat 5e, Cat 6 and 6a, Cat 7 and 7a, Cat 8

A complete technical guide to understanding Ethernet cable categories, performance differences, shielding requirements, use cases, and how to future-proof network infrastructure for residential, commercial, and data center deployments.

Table of Contents

Cat 5e

Cat 5e (Category 5 Enhanced) became the dominant structured cabling standard in the early 2000s and continues to operate in many legacy networks worldwide. It supports 1 Gigabit Ethernet over 100 meters and uses unshielded twisted pair (UTP) cabling. Cat 5e relies on improved crosstalk specifications over Cat 5, which allowed reliable gigabit transmission without major architectural changes.

While Cat 5e is cost-effective, its electrical characteristics are limited compared to newer categories. It lacks the headroom necessary for high-bandwidth applications such as 2.5GBase-T and 5GBase-T under long distances. Noise immunity is also modest, making it inappropriate for electrically noisy environments or advanced Power over Ethernet (PoE++) deployments.

Cat 6

Cat 6 was introduced to provide better performance within the same 100-meter channel limits as Cat 5e but with dramatically reduced crosstalk and improved frequency handling. It supports:

  • 1G Ethernet up to 100 meters
  • 10G Ethernet up to 55 meters (under ideal conditions)
  • 250 MHz bandwidth

Cat 6 typically uses tighter twists and sometimes includes internal separators. Although shielding is optional, many structured cabling professionals prefer unshielded Cat 6 for simplicity and cost advantages. It remains one of the most widely installed categories in commercial environments due to balanced cost, performance, and installation ease.

However, Cat 6 begins to show limitations with 10G applications over long distances, especially in electromagnetically noisy spaces or cable bundles with high PoE loads. While suitable for most enterprise networks, it is less future-proof than Cat 6a.

Cat 6a

Cat 6a (Augmented Category 6) is engineered for full-distance 10G Ethernet support up to 100 meters with robust noise suppression. It increases bandwidth to 500 MHz and almost always includes shielding or enhanced UTP designs.

Cat 6a is the first category designed specifically for:

  • High-density PoE and PoE++ deployments
  • 10GBase-T in data centers
  • Advanced AV over IP systems
  • Wireless access point backhaul supporting Wi-Fi 6, 6E, and 7

Cat 6a is recommended for new commercial installations because it provides at least a decade of network longevity. The tradeoff is thicker cable diameter, which affects bend radius, tray fill, and installation labor cost.

Cat 7

Cat 7 introduced 600 MHz frequency support and shielding on every pair (S/FTP). While this dramatically improves noise performance, Cat 7 is not an officially recognized standard within TIA/EIA in North America. It is defined primarily by ISO/IEC.

Cat 7 requires GG45 or TERA connectors to access its full spec, even though many manufacturers use standard RJ45 connectors for convenience. This deviation complicates interoperability and long-term compatibility. Performance-wise, Cat 7 supports:

  • 10G Ethernet to 100 meters
  • Superior noise immunity vs Cat 6A
  • High EMI environments such as industrial plants

Despite these advantages, its proprietary connector requirements and lack of TIA acceptance limit widespread adoption.

Cat 7a

Cat 7a further increases bandwidth to 1000 MHz and improves alien crosstalk performance. It is fully shielded (S/FTP) and supports 10G Ethernet and potential future applications. However, like Cat 7, it lacks TIA recognition and depends on specialized connectors.

From an engineering standpoint, Cat 7a provides significant signal isolation, making it ideal for mission-critical or noisy industrial networks. Nonetheless, its advantages are overshadowed by the emergence of Cat 8, which provides even higher performance while maintaining RJ45 compatibility.

Cat 8

Cat 8 represents the highest copper cabling category currently standardized by ANSI/TIA. It provides performance up to 2000 MHz and supports data rates of 25GBase-T or 40GBase-T over distances up to 30 meters. It is intended for:

  • Top-of-rack (ToR) data center architectures
  • Short-reach server-to-switch connections
  • High-speed edge aggregation

Cat 8 uses shielded designs exclusively (F/UTP or S/FTP) and retains standard RJ45 connectors. This interoperability allows seamless integration into existing copper-based networks while enabling major performance improvements.

It is not designed for full-building distribution because the 30-meter limit does not support typical horizontal runs. Instead, Cat 8 is best suited for high-speed server clusters and local switching environments.

Guide-to-CAT-Cables-illustration

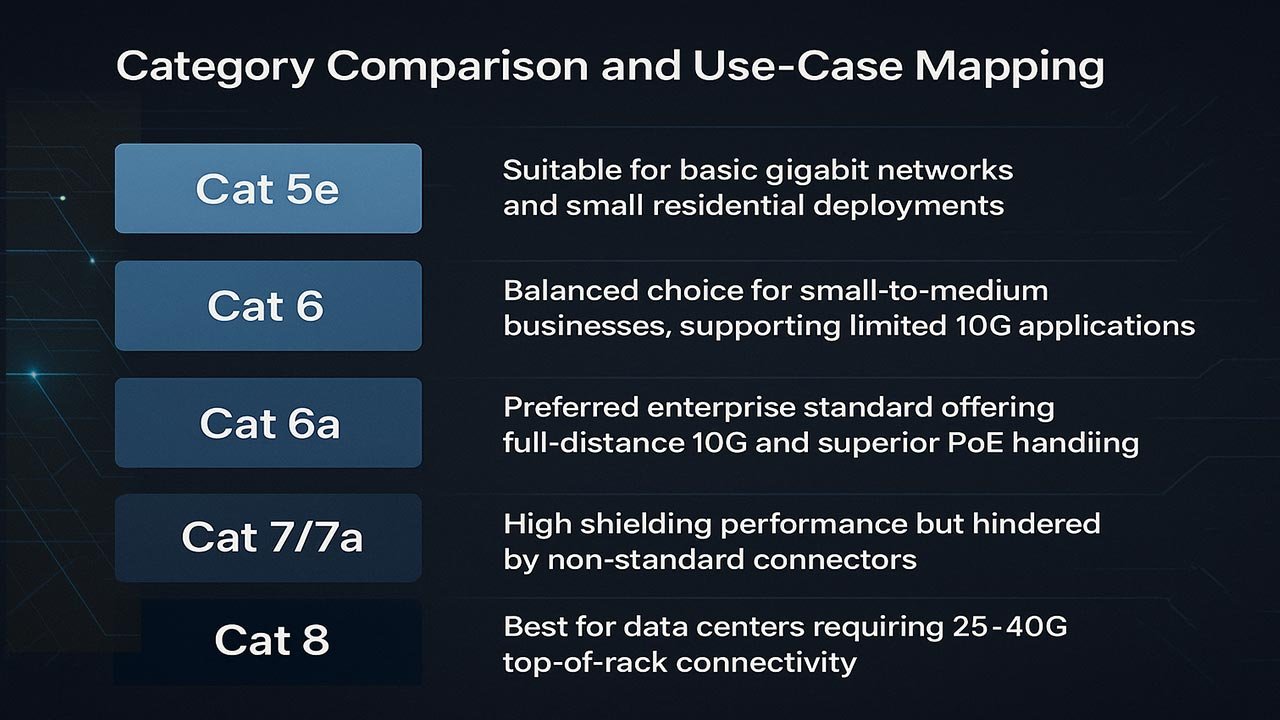

Category Comparison and Use-Case Mapping

Choosing the correct Ethernet category depends on performance needs, environmental noise, PoE requirements, and future bandwidth expansion.

  • Cat 5e – Suitable for basic gigabit networks and small residential deployments.
  • Cat 6 – Balanced choice for small-to-medium businesses, supporting limited 10G applications.
  • Cat 6a – Preferred enterprise standard offering full-distance 10G and superior PoE handling.
  • Cat 7/7a – High shielding performance but hindered by non-standard connectors.
  • Cat 8 – Best for data centers requiring 25–40G top-of-rack connectivity.

A strategic selection ensures reduced upgrade cycles, improved reliability, and optimized cost-performance balance.

Top 5 Frequently Asked Questions

Cat 8 provides higher bandwidth, RJ45 compatibility, and standardized performance. Cat 7 requires non-standard connectors and lacks TIA approval.
Cat 6a is recommended because it supports full-distance 10G and modern PoE loads, making it far more future-proof.
Yes, but performance defaults to the lowest-rated component in the channel.
Shielding is helpful in high-EMI environments and necessary for Cat 7–8, but optional for Cat 6/6a (depending on your interference conditions).
Yes. All twisted-pair Ethernet categories have performance limits at specific distances, especially for 10G and above.

Final Thoughts

Choosing the right Ethernet cable is critical for supporting modern applications such as PoE-powered access points, high-density data transmission, advanced AV-over-IP systems, and future high-speed networking protocols. Cat 6a has become the preferred standard for most commercial deployments due to its balance of cost, performance, and future capacity. Meanwhile, Cat 8 is defining the next generation of data center copper connectivity. Understanding these categories ensures better investment planning, longer infrastructure life cycles, and higher network reliability.
