DIY Hobby Maker’s Guide: How Automation Works?

Learn how automation works, the core building blocks—triggers, logic, and actions—then wire them up with sensors, microcontrollers, and simple workflows. We’ll cover patterns that keep projects reliable, safe, and maintainable, plus a step-by-step example you can adapt at home.

Table of Contents

What “Automation” Really Means

Automation is the repeatable execution of a task without manual intervention, based on conditions you define. Whether you’re turning on grow lights at sunrise, logging workshop temps, or moving a camera slider, you are converting inputs (signals, time, events) into outputs (motions, messages, power) using rules.

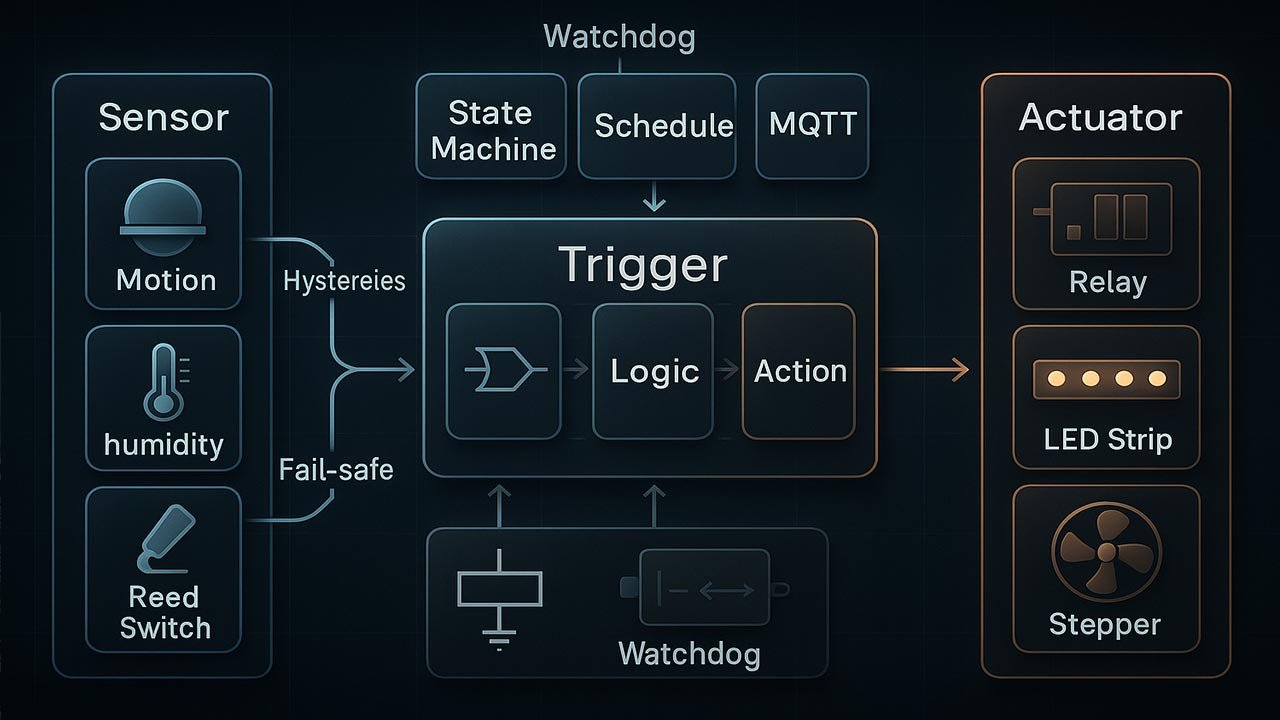

Three Building Blocks: Trigger → Logic → Action

  • Trigger: what starts the workflow (button press, sensor threshold, timer, MQTT message).
  • Logic: the decision mechanism (if/else, thresholds with hysteresis, state machine, schedule).
  • Action: what happens (turn relay on, send notification, write to log, move a stepper).

If you can articulate these three in a sentence, you can build the automation.

Common Types of Automation

  • Rule-based: Simple conditions. Example: “If motion after 9 pm, turn on hallway light for 3 minutes.”
  • Scheduled: Cron-like timers or calendars. Example: “Water plants every day at 6 am.”
  • Event-driven: React to messages or external events (webhook, MQTT topic). Great for system-to-system glue.
  • Closed-loop (feedback): The output is continuously adjusted based on measured error. Example: thermostat using PID to hold temperature.
  • Human-in-the-loop: Semi-automated flows where you approve or override via a dashboard or phone notification.

Hardware Ingredients

Sensing

You can’t automate what you can’t measure.

  • Digital sensors: PIR motion, magnetic reed switches, limit switches.
  • Analog sensors: Temperature (NTC/thermistor), light (LDR), pressure, potentiometers.
  • Smart sensors (I²C/SPI/UART): BME280 (temp/humidity/pressure), VL53L0X (distance), IMUs.

Design notes: add pull-up/pull-down resistors where needed, debounce mechanical contacts (RC + software), and place sensors away from heat or electrical noise sources where possible.

Computing

  • Microcontrollers (MCUs): Arduino (AVR), ESP32/ESP8266 (Wi-Fi/BLE), STM32. Best for real-time control with low power.
  • Single-board computers (SBCs): Raspberry Pi, similar Linux boards. Great for dashboards, databases, and heavy protocols.
  • PLCs/Industrial controllers: Rugged, IEC 61131-3 languages (ladder, function blocks). Overkill for many hobby builds, but rock-solid for harsh environments.

Actuation & Power

  • Relays / SSRs: Switch mains or higher DC loads. Use opto-isolation and proper snubbers/flyback diodes.
  • Motor drivers: H-bridges for DC motors, drivers for steppers/servos; size by current, voltage, and thermal path.
  • Power supplies: Budget headroom (20–30%), fuse or polyfuse outputs, and separate noisy loads from logic rails (LC filters or dedicated regulators).

Software & Orchestration

You can author automations in many ways:

  • Node-RED: Visual flow programming. Nodes for HTTP, MQTT, GPIO, timers, and dashboards.
  • Home Assistant automations: YAML or UI; ideal for smart-home workflows across brands.
  • Arduino/PlatformIO: C/C++ sketches for MCUs; deterministic timing with interrupts or RTOS on ESP32.
  • Python on SBCs: Async I/O (e.g., asyncio, paho-mqtt) for glue logic, logging, and UIs.

Patterns that scale:

  • State machines: Model modes (IDLE, HEATING, FAULT). Transitions are explicit; bugs are fewer.
  • Idempotent actions: Make “turn light on” safe to repeat; your flows become robust to retries.
  • Retry with backoff: When Wi-Fi or a cloud endpoint hiccups, wait progressively longer.

Communication Protocols You’ll Actually Use

  • GPIO: Direct on/off for buttons and relays; add debouncing and input protection.
  • PWM: Dim LEDs, control fan speed, hobby servo position.
  • I²C/SPI/UART: Short-range device buses. Mind pull-ups for I²C and cable length.
  • MQTT: Lightweight pub/sub for IoT. Decouple producers (sensors) from consumers (dashboards/automations).
  • HTTP/Webhooks: Easy integration with cloud services and no-broker setups.
  • Modbus/RS-485: Robust industrial fieldbus for long runs and noise-heavy environments.

Reliability, Safety, and Security

  • Hysteresis: Prevent relay chattering by using different on/off thresholds (e.g., on at 28 °C, off at 26 °C).
  • Watchdogs: MCU resets itself if the main loop stalls.
  • Fail-safe defaults: Outputs should settle to safe states on boot or communication loss.
  • Isolation: Opto-isolators and SSRs when mixing mains and logic; keep creepage/clearance distances.
  • Logging & observability: Record sensor values, state transitions, and faults; plot trends to tune thresholds.
  • Security: Change default passwords, segregate IoT devices on VLANs, use TLS where possible, and sign OTA firmware.

automation

Mini Project: Greenhouse Fan Automation

Goal: Keep a small greenhouse comfortable by switching a 12 V fan based on temperature and humidity.
Hardware

  • ESP32 DevKit (Wi-Fi + plenty of GPIO).
  • BME280 sensor (I²C) for temp/humidity.
  • Logic-level MOSFET or 10 A relay module for the fan.
  • 12 V supply (fan), 5 V buck for ESP32; common ground, separate rails.
  • Flyback diode if you use a relay coil; snubber for motor noise.

Logic

  • Trigger: new sensor reading every 5 s or a significant change (≥0.3 °C).
  • Decision: turn fan on if temp > 28 °C OR (temp > 26 °C AND humidity > 70%).
    Turn fan off when temp < 26 °C AND humidity < 65% (hysteresis).
  • Safety: if sensor read fails for 60 s, turn fan to low duty (PWM 30%) as a precaution and raise an alert.
  • Telemetry: publish readings and state via MQTT (greenhouse/telemetry, greenhouse/fan/state).

Why it works: Clear thresholds, hysteresis to avoid chatter, a fail-safe mode, and visibility through MQTT. You can add a dashboard in Node-RED or Home Assistant to tune setpoints live.

Top 5 Frequently Asked Questions

Use an MCU for real-time control, low power, and simple logic. Use an SBC for dashboards, databases, computer vision, or when you need Linux-level libraries and storage.
Add hysteresis (different on/off points) or a minimum run time (e.g., stay on for at least 2 minutes).
MQTT excels at reliable, low-overhead pub/sub on local networks. HTTP is simple for webhooks and cloud APIs. Many projects use both: sensors publish via MQTT; cloud alerts go via HTTP.
Use certified modules/SSRs, opto-isolation, proper fusing, and enclosure ratings. Keep low-voltage and mains separated; follow local electrical codes.
Log every trigger, decision, and action with timestamps. Add a manual override switch. Graph sensor data to reveal tuning issues.
Great automations are boringly reliable: explicit triggers, simple logic, and actions that fail safely. Model your system as Trigger → Logic → Action, add observability (logs/metrics), and bake in hysteresis, retries, and watchdogs. Start small, measure behavior, and iterate. When each link is solid, chaining them scales from a single relay to a whole workshop.
